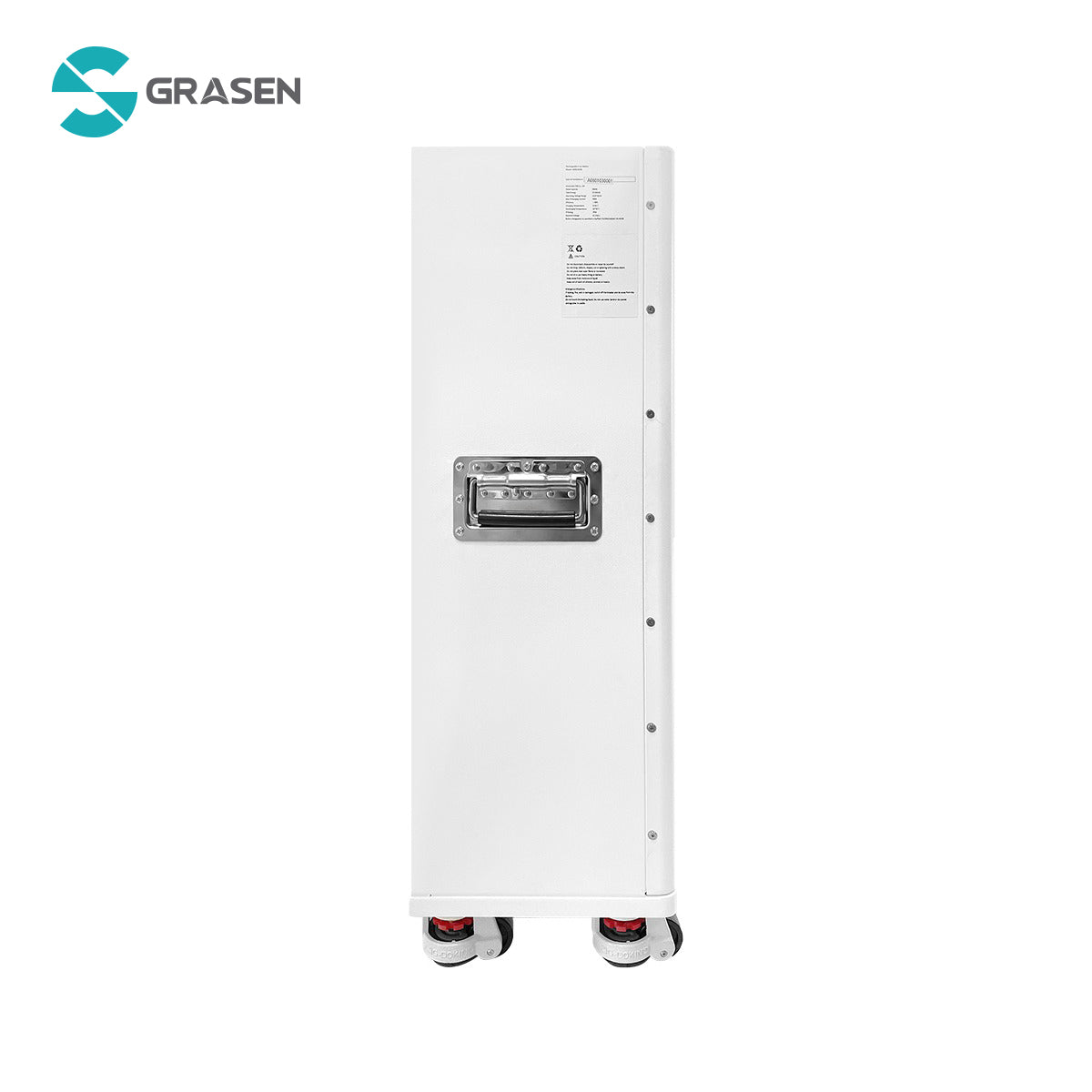

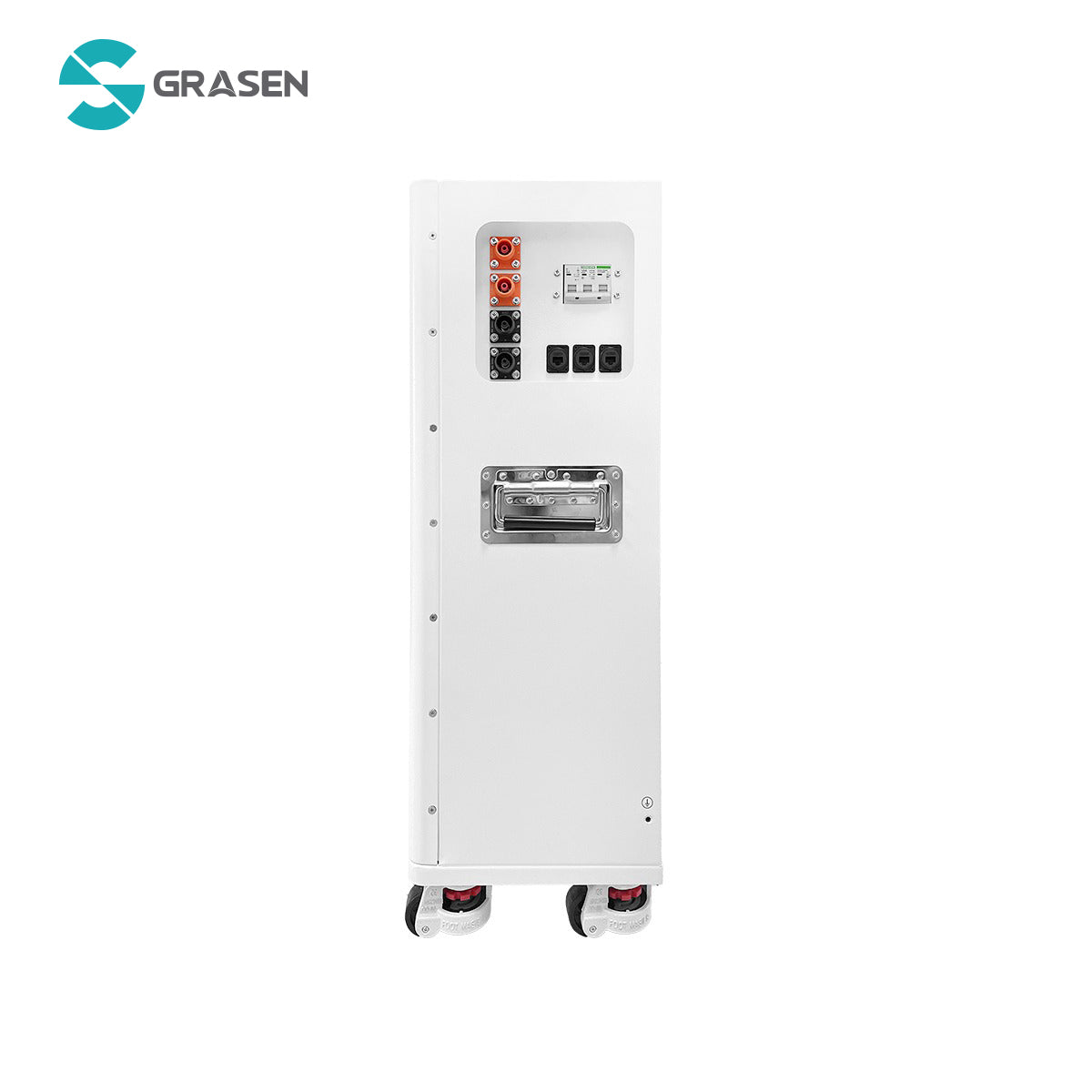

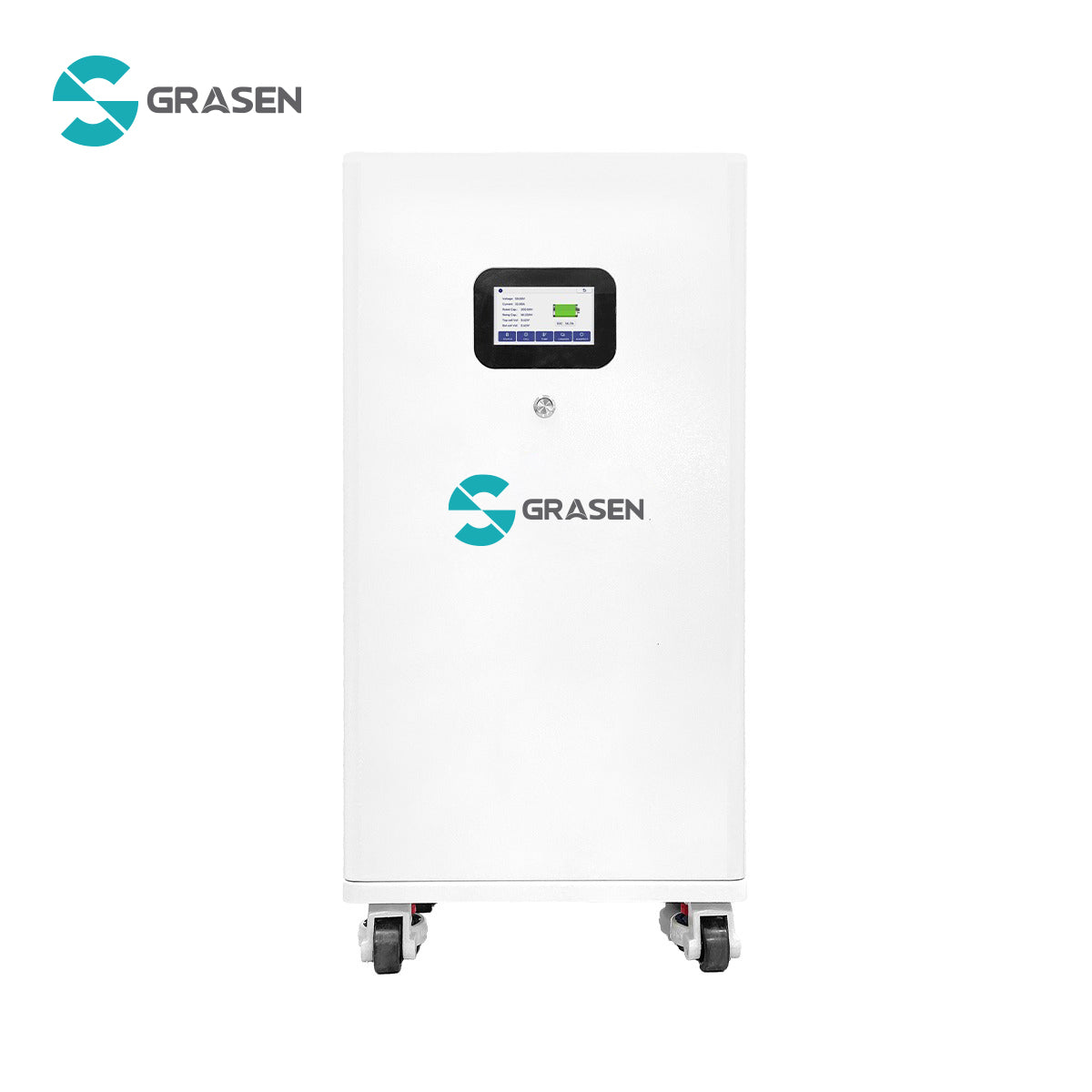

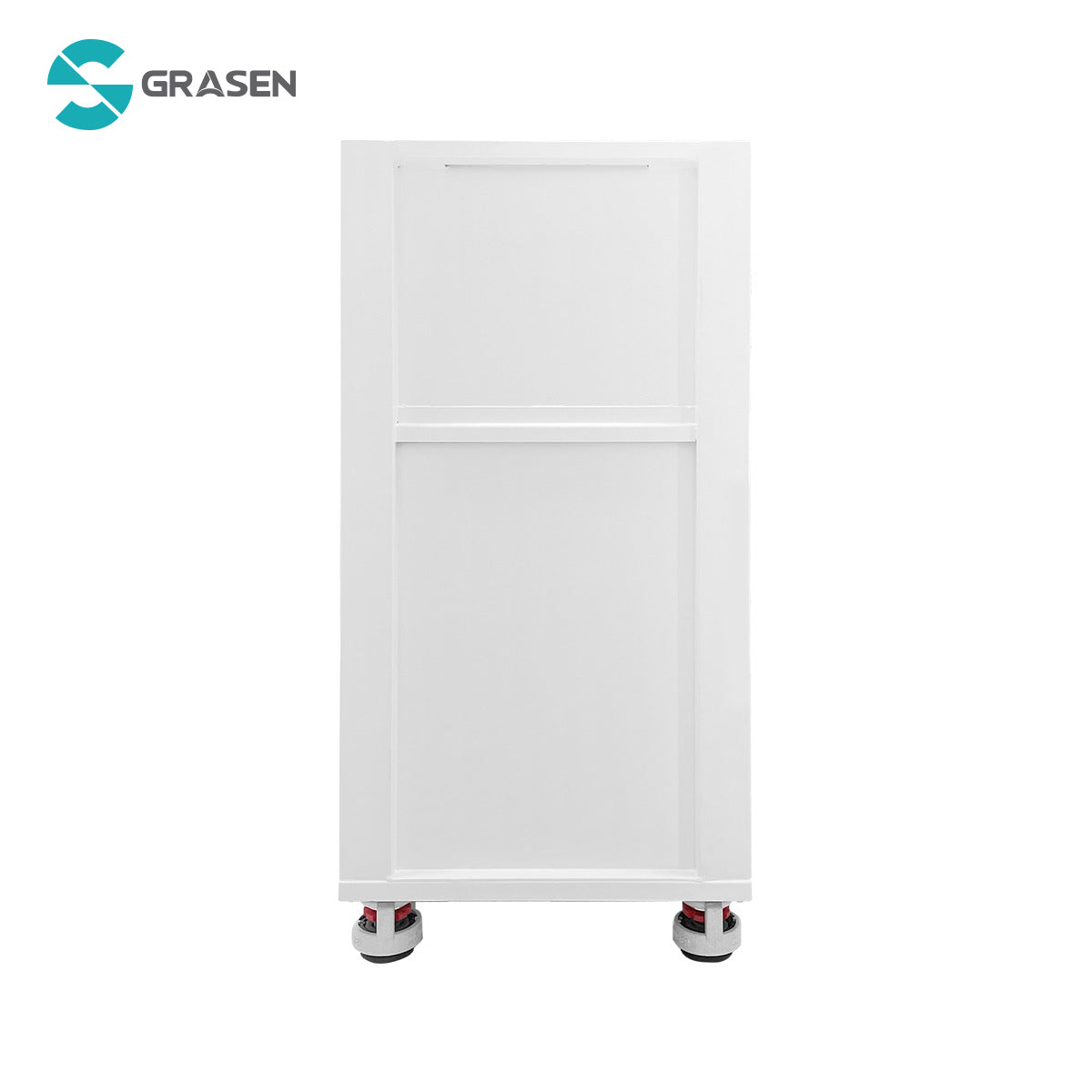

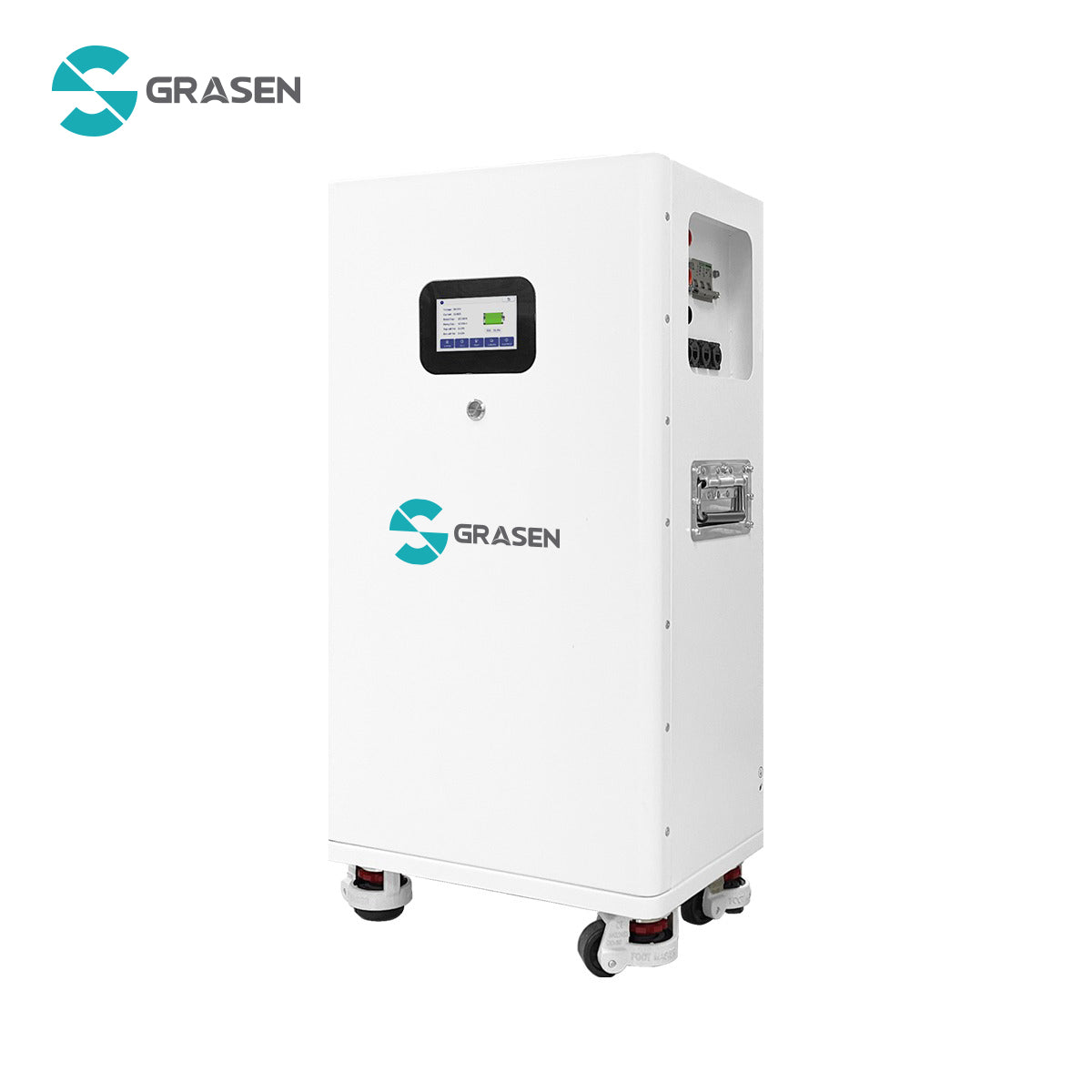

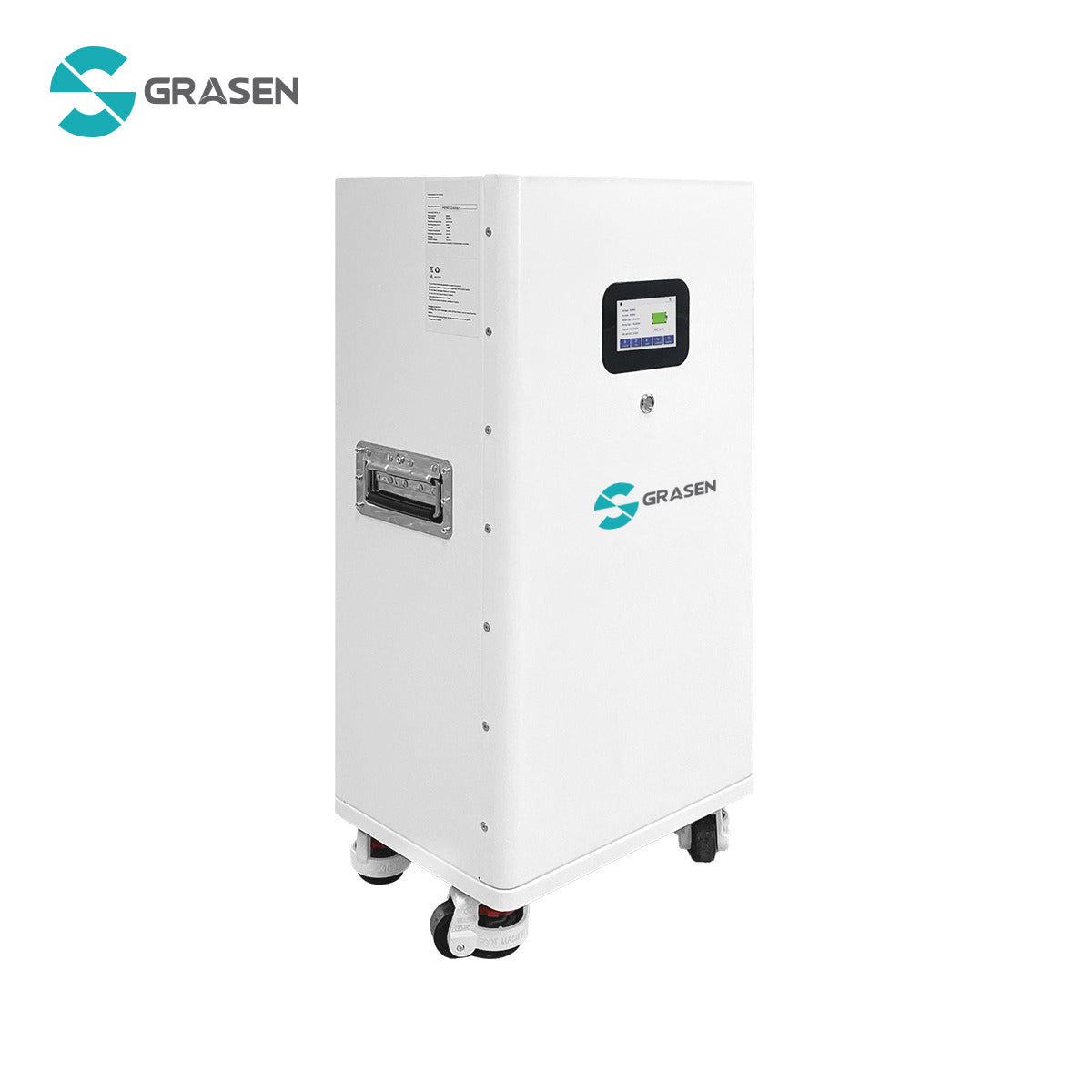

AMW10240 51.2V 10.24KWH Wall/Floor Lithium Battery
Product information
Product details
Review the complete product description, features and usage guidance before choosing your configuration.
1. Cycle life：>6000 Cycles @ 90%DOD.
2. Intelligent BMS：Wider compatibility.
3. Compact Design and Safety Protection.
4. Consistency of battery cells：20 Years life span Settable charging voltage.
5. Scalable: paralleled 32 sets：Battery:10.24kWh - 327.68kWh.

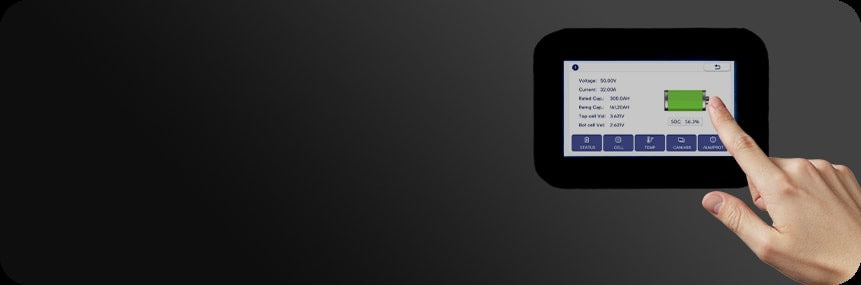

6. Touch screen：Set communication protocol and DIP View battery information.
7. Safety Standard：IEC61000/CE/UN38.3/MSDS.
| Model | AMW10240 | Relafive Humidity | 5% - 95% |
| Module Type | LFP 10.24kWh / LV | Communicafion Interface | CAN / RS485 |
| Nominal Voltage | 51.2V | Enclosure Protecfion Rafing | IP 52 |
| Operafing Voltage Range | 44.8~58.4V | Cooling Type | Natural cooling |
| Nominal Capacity | 200Ah | Cycle Life | ≥6000 |
| Nominal Energy (at 25℃) | 10.24kWh | Warranty | 10 years |
| DOD | 90% | Life Span | 20+ Years (25℃) |
| Charge/Discharge Current | 100A | Max. Pieces of Parallel | 32 |
| Max Charge/Discharge Current | 200A | Dimension (L*W* H) | 735*399*277mm |
| Charge Temperature | 0~55℃ | Weight | 89.69kg |
| Discharge Temperature | -10~50℃ | Cerfificates | IEC61000/CE/UN38.3/MSDS |
