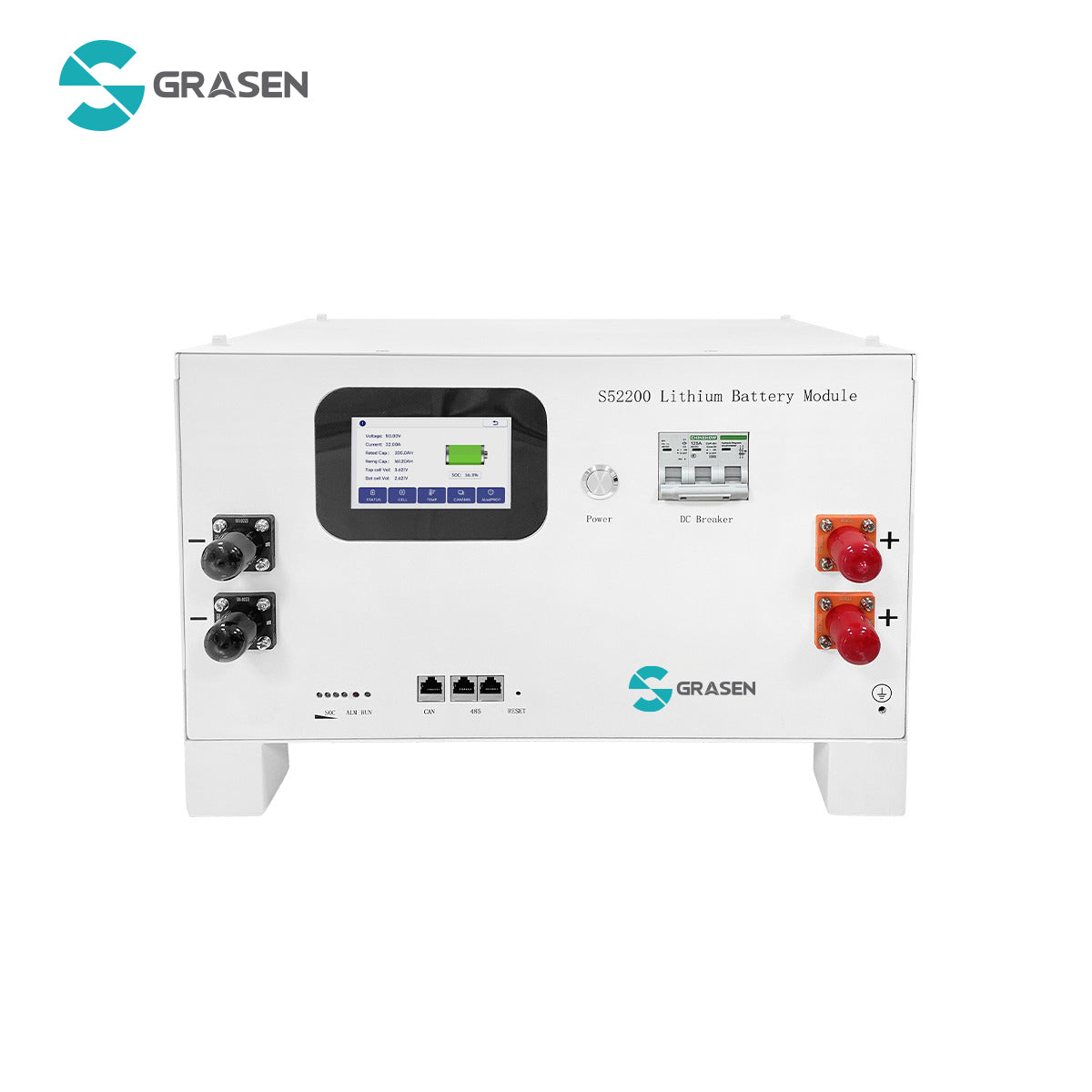

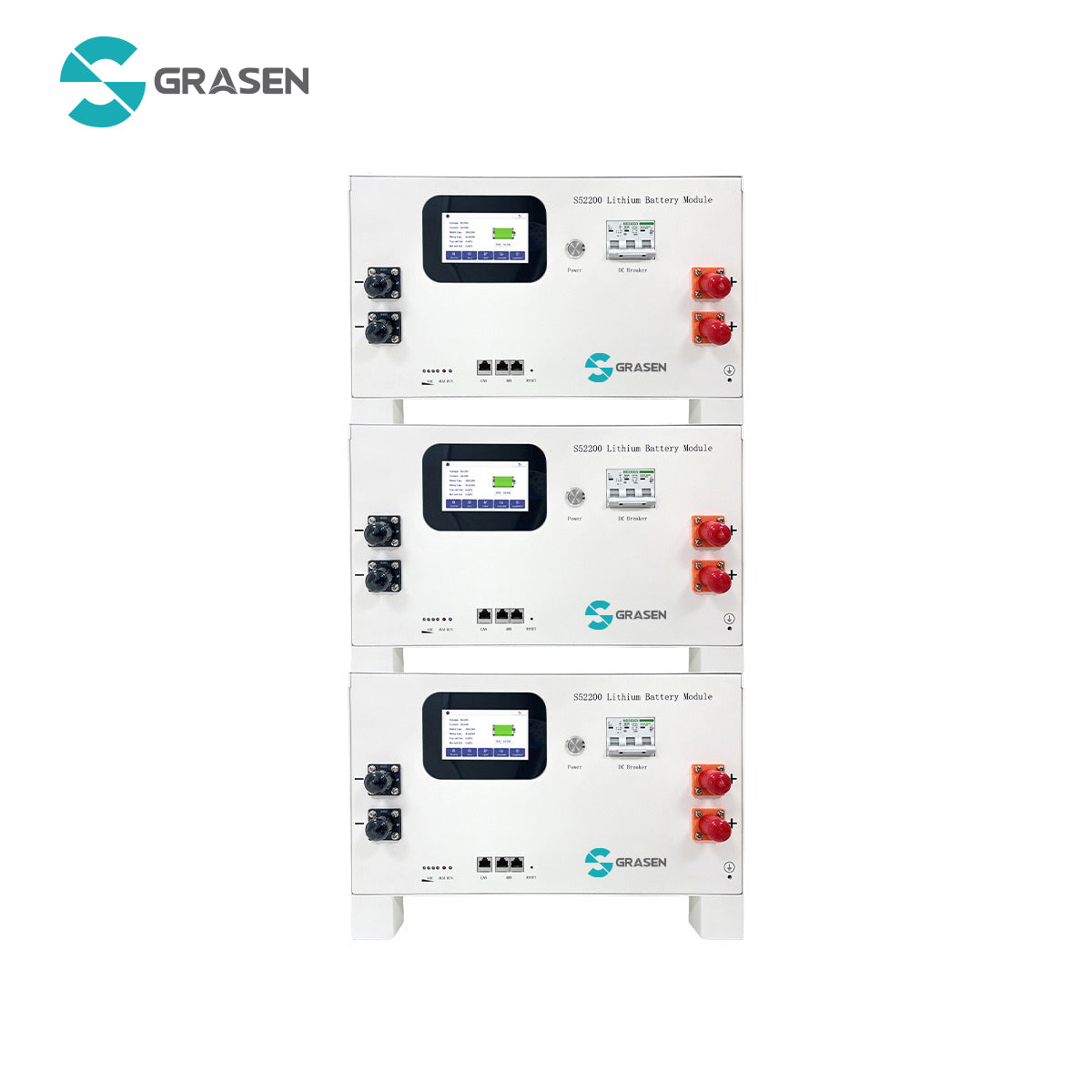

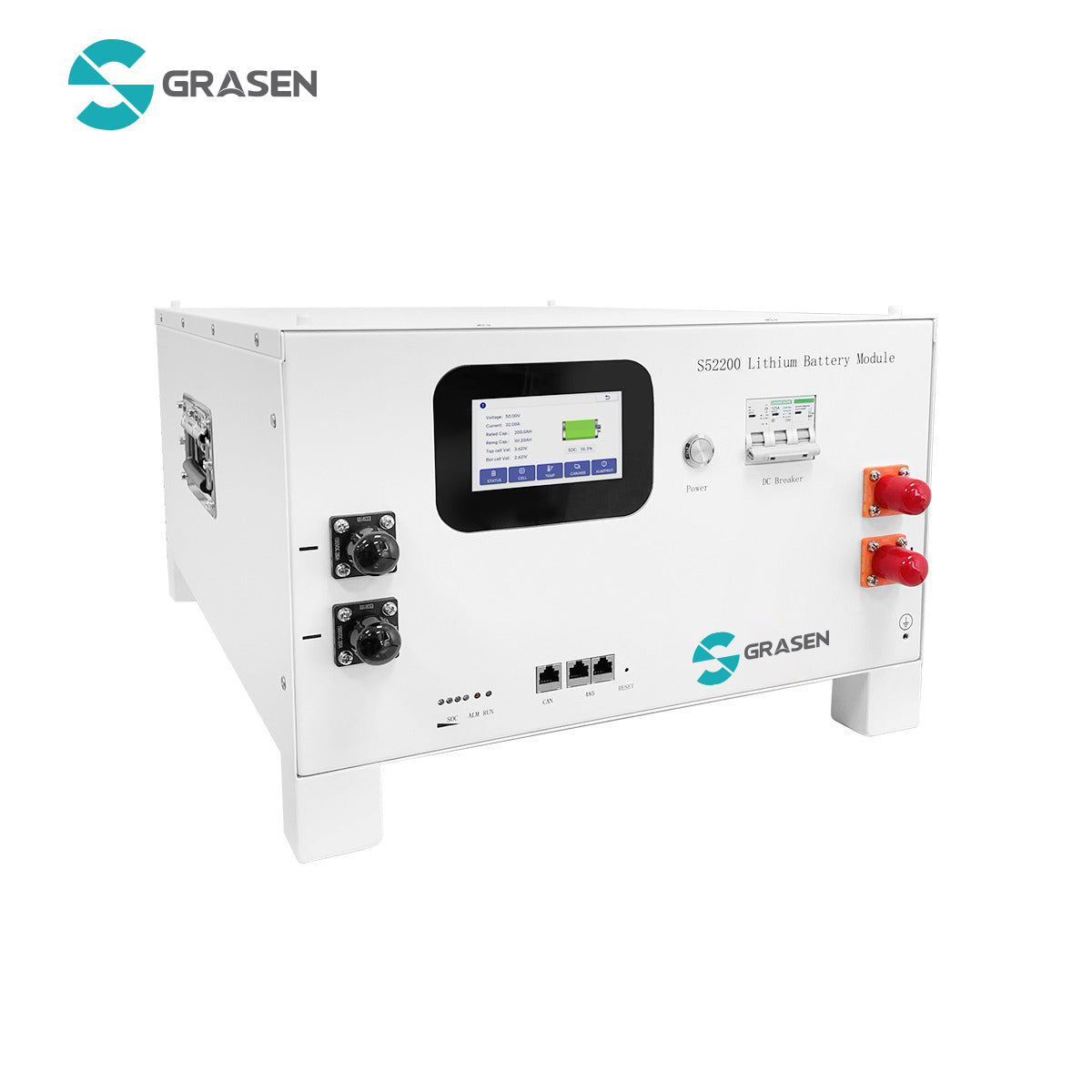

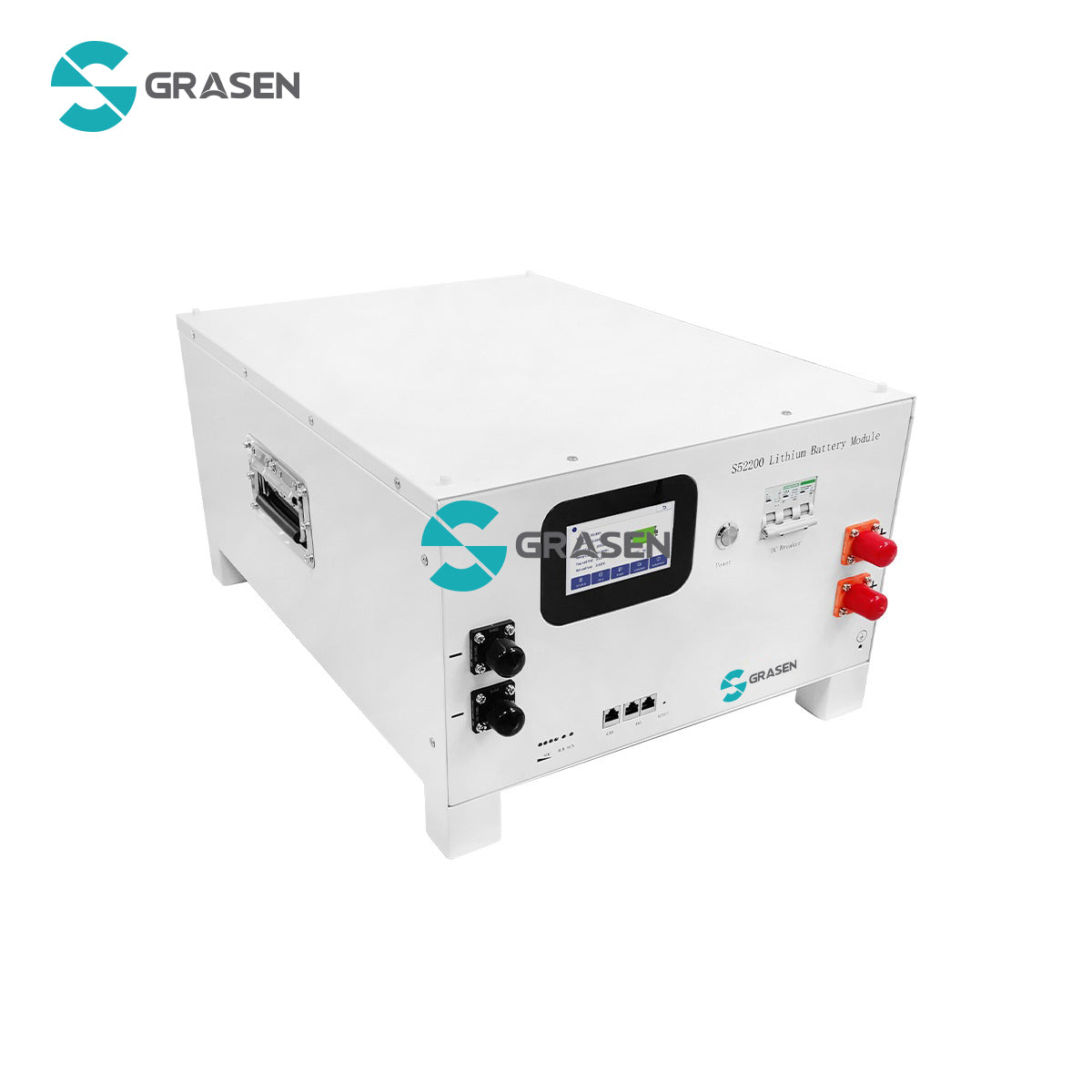

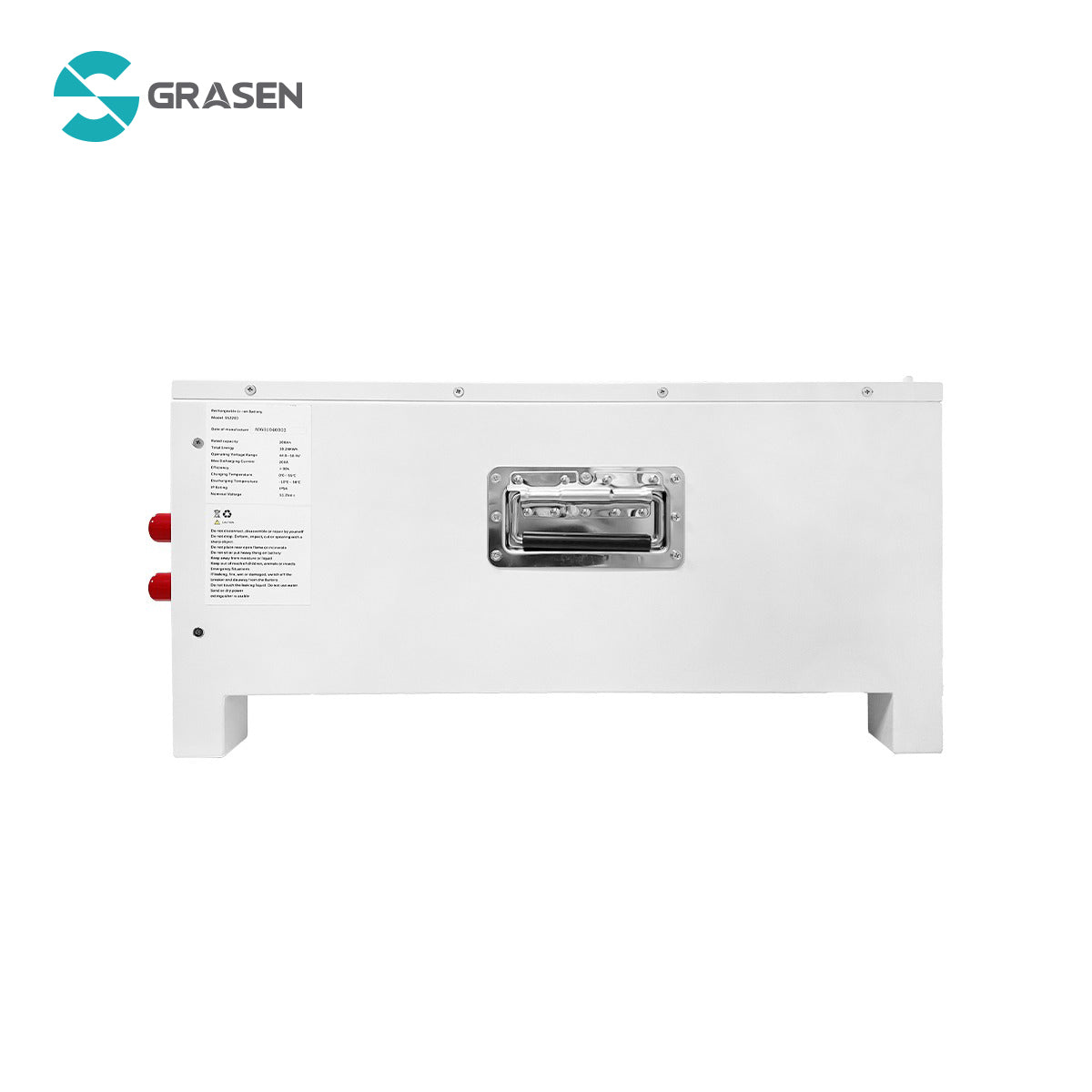

S52200 51.2V 10.24KWH Stack-mounted Lithium Battery
Product information
Product details
Review the complete product description, features and usage guidance before choosing your configuration.
1. Cycle life：>6000 Cycles @ 90%DOD.
2. Intelligent BMS：Wider compatibility.
3. Compact Design and Safety Protection.
4. Consistency of battery cells：20 Years life span Settable charging voltage.
5. Scalable: paralleled 32 sets：Battery:10.24kWh - 327.68kWh.
6. Touch screen：Set communication protocol and DIP View battery information.
7. Safety Standard：IEC61000/IEC62619/ CE/CB/UN38.3/MSDS.
| Model | S52200 |
| Module Type | LFP 10.24kWh / LV |
| Nominal Voltage | 51.2V |
| Operafing Voltage Range | 44.8~58.4V |
| Nominal Capacity | 200Ah |
| Nominal Energy (at 25℃) | 10.24kWh |
| DOD | 90% |
| Charge/Discharge Current | 100A |
| Max Charge/Discharge Current | 200A |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -10~50℃ |
| Relafive Humidity | 5% - 95% |
| Communicafion Interface | CAN / RS485 |
| Enclosure Protecfion Rafing | IP 52 |
| Cooling Type | Natural cooling |
| Cycle Life | ≥6000 |
| Warranty | 10 years |
| Life Span | 20+ Years (25℃) |
| Max. Pieces of Parallel | 32 |
| Dimension (L*W* H) | 600*440*310mm |
| Weight | 80.9kg |
| Cerfificates | IEC61000/CE/UN38.3/MSDS |
